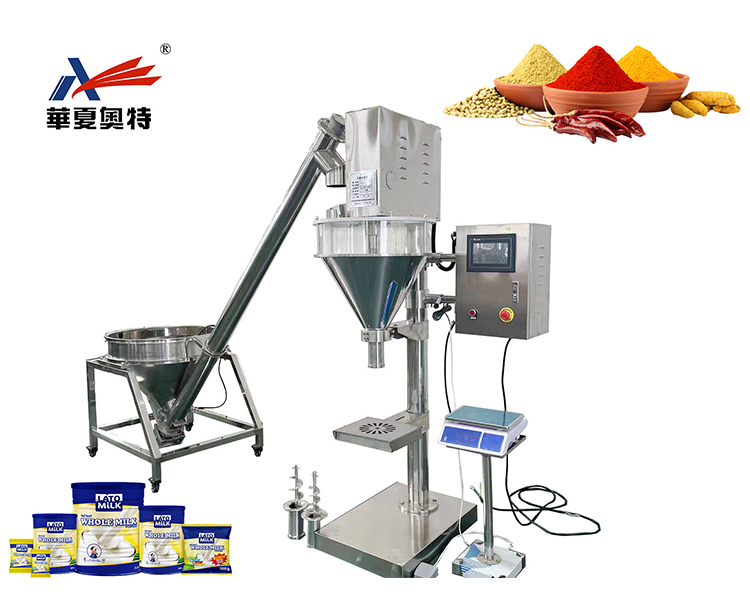

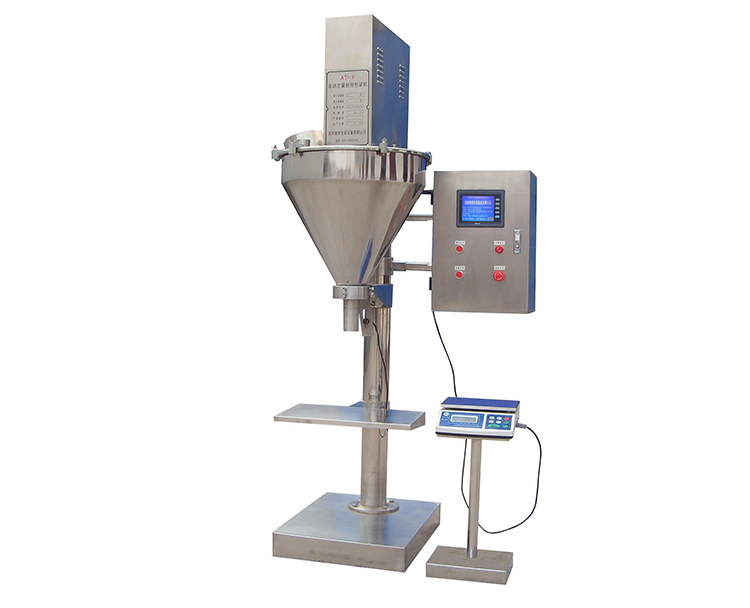

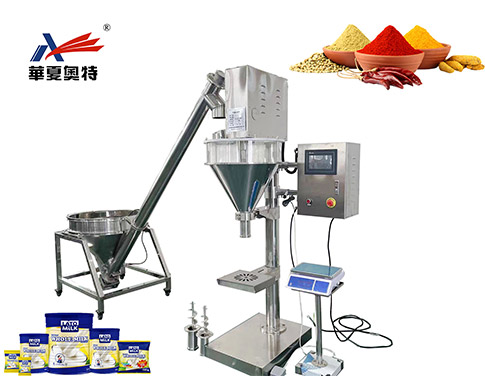

This series of packaging machines adopts a metering method that combines screw filling and electronic weighing feedback, and is controlled by a microcomputer. It has functions such as automatic quantitative measurement, automatic filling, automatic error correction, counting, and material cleaning.
This series of packaging machines adopts a metering method that combines screw filling and electronic weighing feedback, and is controlled by a microcomputer. It has functions such as automatic quantitative measurement, automatic filling, automatic error correction, counting, and material cleaning.
It is suitable for quantitative packaging and filling of powder and granular mixtures in industries such as pharmaceuticals, chemicals, food, and agricultural products; such as: compound seasonings, natural seasonings, food additives, flavorings, flour, milk powder, protein powder, solid beverages, white sugar, monosodium glutamate, pesticides, veterinary drugs, laundry detergent, enzyme preparations, feed additives, chemicals, and new building materials.
Suitable for quantitative filling of various bottles, cans, and bags; Photoelectric sensor feeding, foot switch control optional; Automatic tracking and correction of errors caused by changes in material specific gravity and level; Adjustable scale graduation value to meet various precision requirements; Adjustable filling motor speed to meet the requirements of different powder materials; By changing screw parts, the same machine can meet different metering requirements; The stirring motor uses a Taiwanese-made noiseless motor; Automatic error correction with over-tolerance alarm; Easy to use and space-saving.
1. The feeding motor can be either a stepper motor or a servo motor (servo motors offer higher torque, maintain torque even at high speeds, provide higher control precision, and are 30% faster than stepper motors in operation);

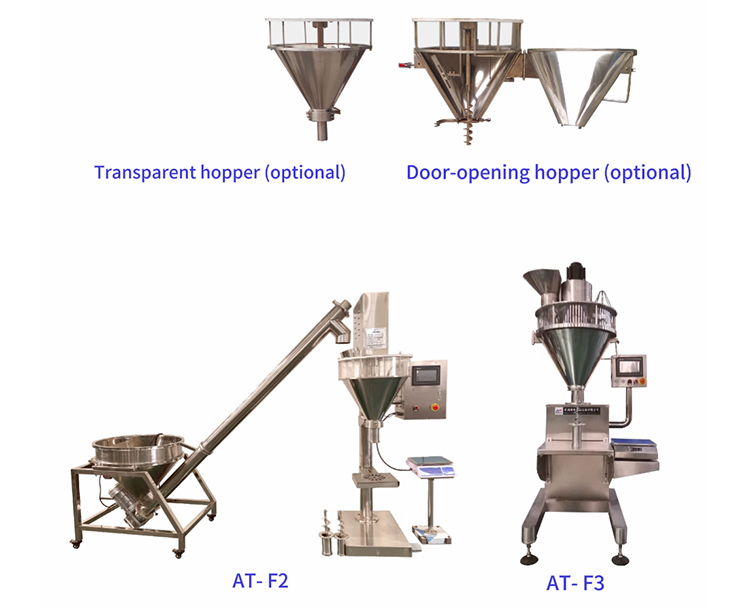

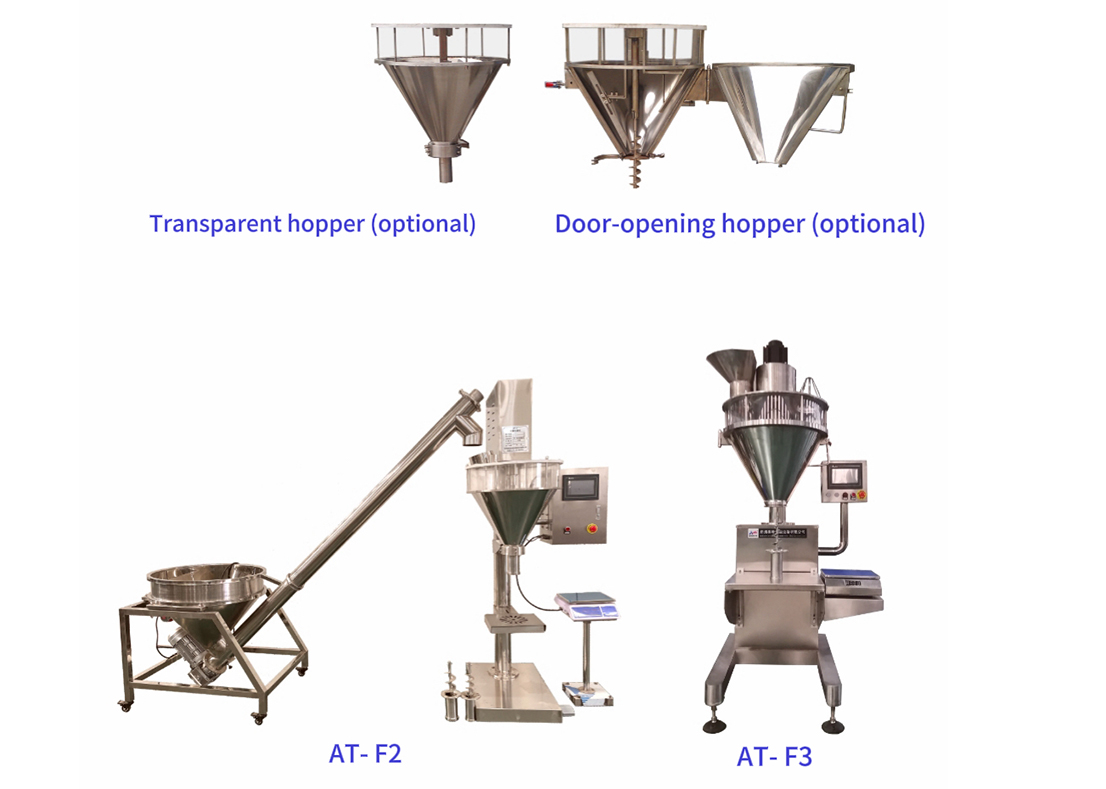

2. The hopper can be selected from standard stainless steel, semi-transparent, or double-door hoppers (standard model uses a standard stainless steel hopper);
3. An automatic feeder can be added for automatic feeding and hopper level control (an automatic feeder is required for containers over 200 grams to ensure proper hopper level and filling accuracy).
| Equipment code | AT-F4 | AT-F2 | AT-F3 | AT-F3C |
| Measuring range | 1-500g | 5-5000g | 5-5000g | 1000-5000g |
| Accuracy (100g) | ±0.1-1.0g | ±0.1-1.0g | ±0.1-1.0g | ±0.1-0.5g |
| Filling speed (1000g) | 0-40 times/min | 0-30 times/min | 0-30 times/min | 0-20 times/min |
| Compressed air consumption | None | None | None | 10 L/min |
| Hopper | Liquid hopper | Liquid hopper | Liquid hopper | Liquid hopper |
| Control system | LCD touch screen | LCD touch screen | LCD touch screen | LCD touch screen |
| Power | AC220V/50Hz 300W | AC380V/50Hz 900W | AC380V/50Hz 1500W | AC380V/50Hz 1500W |
| Dimensions (cm) | 160×90×150 | 180×90×150 | 190×90×150 | 190×90×150 |
| Weight | 120KG | 200KG | 250KG | 250KG |
| Voltage power | AC220V/50Hz 300W | AC380V/50Hz 900W | AC380V/50Hz 1500W | AC380V/50Hz 1500W |
